PSDNN 2525M12 EXTERNAL TOOLHOLDER
Indexa Lever Lock External Toolholders – PSDN N

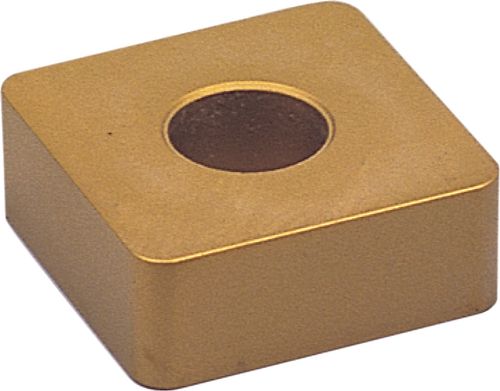

45° straight approach for negative square inserts.
Out of stock
SKU : IND1063240K
Indexa Lever Lock External Toolholders – PSDN N
45° straight approach for negative square inserts.

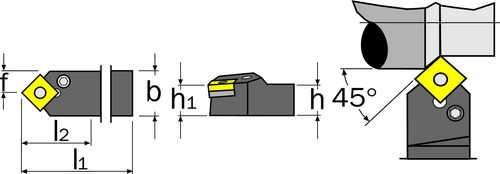

Specification :
Brand : Indexa
Designation PSDN…. : N 2525M
Dimensions b : 25
Dimensions f : 12.5
Dimensions h=h1 : 25
Dimensions l1 : 150
Dimensions l2 : 28
eCl@ss Code : 28039190
Overall Weight : 0.69
Supplier Part No. : 106-3240
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
