PSBNL 2020K12 EXTERNAL TOOLHOLDER
Indexa Lever Lock External Toolholders – PSBN R/L

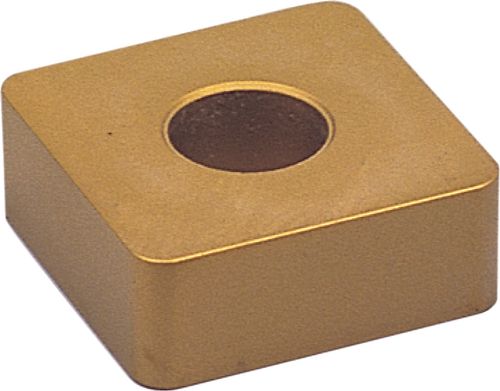

75° approach for negative square inserts.
Out of stock
SKU : IND1062950K
Indexa Lever Lock External Toolholders – PSBN R/L
75° approach for negative square inserts.
Specification :
Brand : Indexa

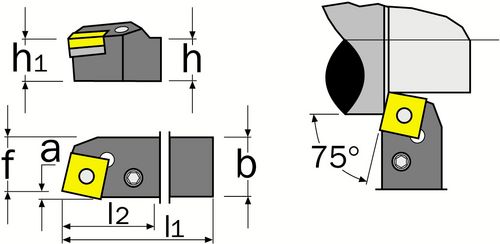

Designation PSBN…. : L 2020K
Dimensions a : 3
Dimensions b : 20
Dimensions f : 17
Dimensions h=h1 : 20
Dimensions l1 : 125
Dimensions l2 : 28
eCl@ss Code : 28039190
Overall Weight : 0.375
Supplier Part No. : 106-2950
UNSPSC Code : 23242106
Weight each : 390g
| Weight | 1 kg |
|---|
