PRSNR 2525M12 EXTERNAL TOOLHOLDER
Indexa Lever Lock External Toolholders – PRSN R

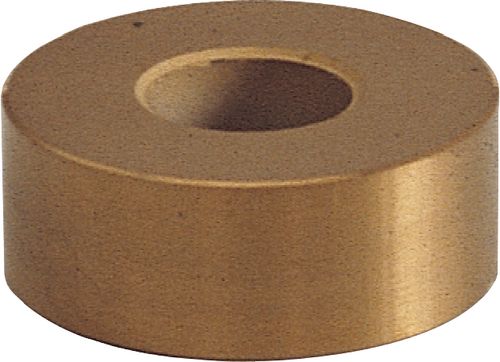

90° approach for negative round inserts.
Out of stock
SKU : IND1062840K
Indexa Lever Lock External Toolholders – PRSN R
90° approach for negative round inserts.

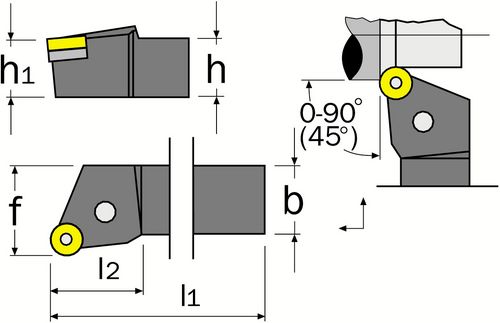

Specification :
Brand : Indexa
Designation PRSN…. : R 2525M
Dimensions b : 25
Dimensions f : 32
Dimensions h=h1 : 25
Dimensions l1 : 150
Dimensions l2 : 28
eCl@ss Code : 28039190
Overall Weight : 0.7
Supplier Part No. : 106-2840
UNSPSC Code : 23242106
Weight each : 715g
| Weight | 1 kg |
|---|
