PORTABLE OPTICAL REFRACTOMETER

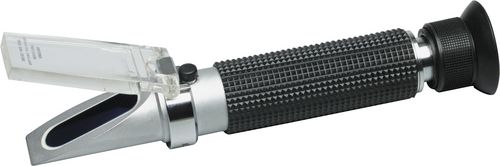

Oxford Portable Optical Refractometer
For determining the concentration of oil in water emulsions and transparent solutions, such as machine shop coolant. Maintaining the correct mixture in coolant systems is vital to ensure optimum performance from cutting tools. To protect the machine and workpiece from corrosion and to reduce the risk of health hazards arising from incorrect concentrations of water soluble oils. To economise the use of water base cutting fluids and grinding fluids.
Specifications:
Range ND: 1.333 – 1.356. Bx: 0 – 15%.
Eyepiece magnification: 11x.
Telescopic lens magnification: 4x.
Accuracy: ±0.0003 ±0.2%
Lattic value: 0.0005 0.2%

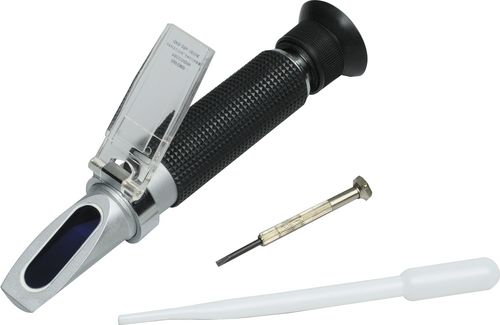

Supplied in high quality fitted metal case complete with calibration screwdriver and operator manual.
SKU : OXD3361010K
Oxford Portable Optical Refractometer
For determining the concentration of oil in water emulsions and transparent solutions, such as machine shop coolant. Maintaining the correct mixture in coolant systems is vital to ensure optimum performance from cutting tools. To protect the machine and workpiece from corrosion and to reduce the risk of health hazards arising from incorrect concentrations of water soluble oils. To economise the use of water base cutting fluids and grinding fluids.
Specifications:
Range ND: 1.333 – 1.356. Bx: 0 – 15%.
Eyepiece magnification: 11x.
Telescopic lens magnification: 4x.
Accuracy: ±0.0003 ±0.2%
Lattic value: 0.0005 0.2%
Supplied in high quality fitted metal case complete with calibration screwdriver and operator manual.
Specification :
Brand : Oxford Precision
Dimensions : 38 x 38 x 185mm
eCl@ss Code : 32011706
UNSPSC Code : 41115313
Weight each : 30g
| Weight | 1 kg |
|---|
