PDNNR 2525M15 EXTERNAL TOOLHOLDER
Indexa Lever Lock External Toolholders – PDNN R

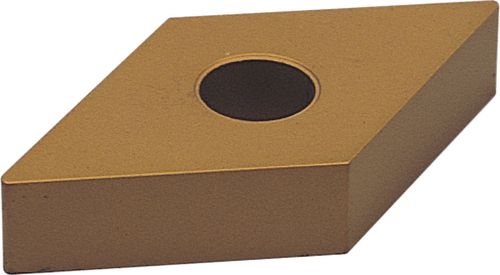

63° approach for negative 55° rhombic inserts.
Out of stock
SKU : IND1062580K
Indexa Lever Lock External Toolholders – PDNN R
63° approach for negative 55° rhombic inserts.

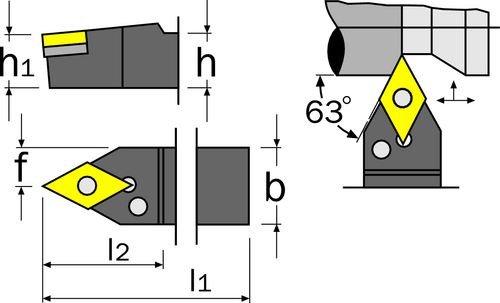

Specification :
Brand : Indexa
Designation PDNN…. : R 2525M
Dimensions b : 25
Dimensions f : 12.5
Dimensions h=h1 : 25
Dimensions l1 : 150
Dimensions l2 : 34
eCl@ss Code : 28039190
Overall Weight : 0.66
Supplier Part No. : 106-2580
UNSPSC Code : 23242106
Weight each : 689g
| Weight | 1 kg |
|---|
