PDJNR 2020K11 EXTERNAL TOOLHOLDER
Rp1.498.000
Indexa Lever Lock External Toolholders – PDJN R/L

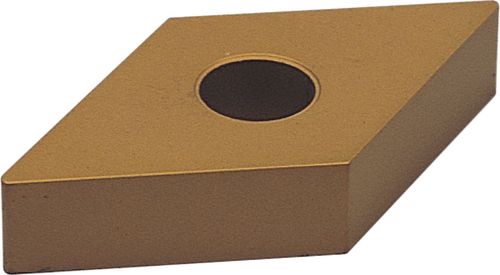

93° approach for negative 55° rhombic inserts.
Out of stock
SKU : IND1062380K
Indexa Lever Lock External Toolholders – PDJN R/L
93° approach for negative 55° rhombic inserts.
Specification :
Brand : Indexa

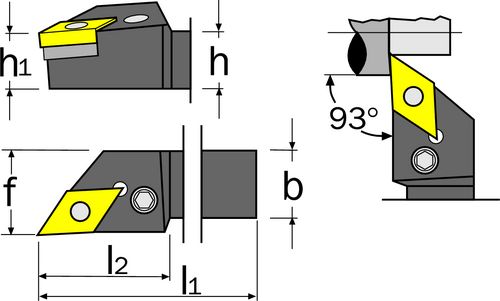

Designation PDJN…. : R 2020K
Dimensions b : 20
Dimensions f : 25
Dimensions h=h1 : 20
Dimensions l1 : 125
Dimensions l2 : 30
eCl@ss Code : 28039190
Overall Weight : 0.37
UNSPSC Code : 23242106
Weight each : 386g
| Weight | 1 kg |
|---|
