PDJNL 2525M15 EXTERNAL TOOLHOLDER
Indexa Lever Lock External Toolholders – PDJN R/L

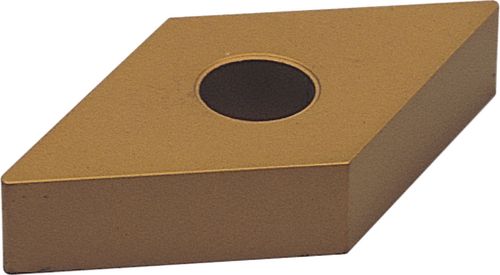

93° approach for negative 55° rhombic inserts.
Out of stock
SKU : IND1062450K
Indexa Lever Lock External Toolholders – PDJN R/L
93° approach for negative 55° rhombic inserts.
Specification :
Brand : Indexa

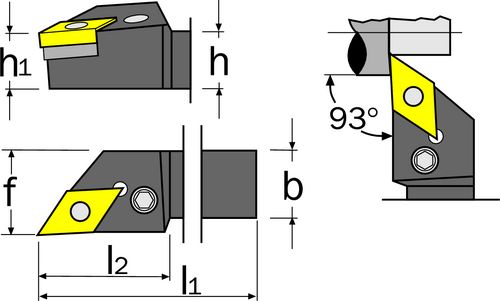

Designation PDJN…. : L 2525M
Dimensions b : 25
Dimensions f : 32
Dimensions h=h1 : 25
Dimensions l1 : 150
Dimensions l2 : 34
eCl@ss Code : 28039190
Overall Weight : 0.695
Supplier Part No. : 106-2450
UNSPSC Code : 23242106
Weight each : 720g
| Weight | 1 kg |
|---|
