PDJNL 2020K11 EXTERNAL TOOLHOLDER
Rp1.498.000
Indexa Lever Lock External Toolholders – PDJN R/L

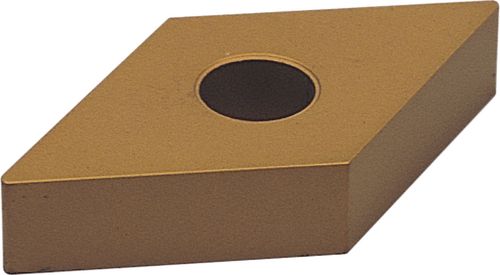

93° approach for negative 55° rhombic inserts.
Out of stock
SKUÂ :Â IND1062390K
Indexa Lever Lock External Toolholders – PDJN R/L
93° approach for negative 55° rhombic inserts.
Specification :
Brand : Indexa

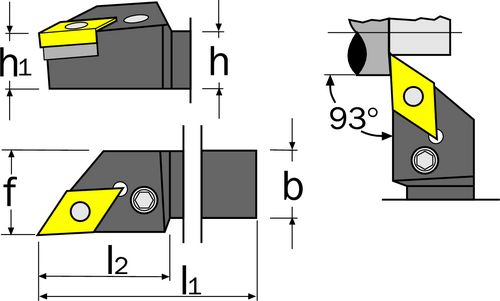

Designation PDJN…. : L 2020K
Dimensions b : 20
Dimensions f : 25
Dimensions h=h1Â :Â 20
Dimensions l1Â :Â 125
Dimensions l2Â :Â 30
eCl@ss Code : 28039190
Overall Weight : 0.375
UNSPSC Code : 23242106
Weight each : 383g
| Weight | 1 kg |
|---|
