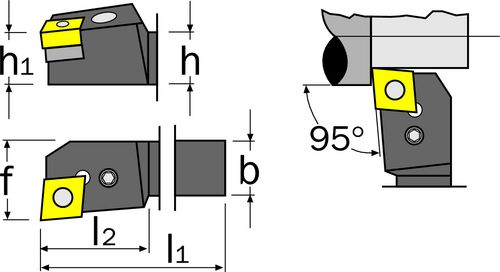

PCLNR 2525M16 EXTERNAL TOOLHOLDER
Indexa Lever Lock External Toolholders – PCLN R/L
95° approach for negative 80° rhombic inserts.
Out of stock
SKU : IND1062060K
Indexa Lever Lock External Toolholders – PCLN R/L
95° approach for negative 80° rhombic inserts.
Specification :
Brand : Indexa
Designation PCLN…. : R 2525M
Dimensions b : 25
Dimensions f : 32
Dimensions h=h1 : 25
Dimensions l1 : 150
Dimensions l2 : 34
eCl@ss Code : 28039190
Overall Weight : 0.74
UNSPSC Code : 23242106
Weight each : 743g
| Weight | 1 kg |
|---|
