PCLNR 2525M12 EXTERNAL TOOLHOLDER
Rp1.584.000
Indexa Lever Lock External Toolholders – PCLN R/L
95° approach for negative 80° rhombic inserts.
Out of stock
SKUÂ :Â IND1062040K
Indexa Lever Lock External Toolholders – PCLN R/L
95° approach for negative 80° rhombic inserts.

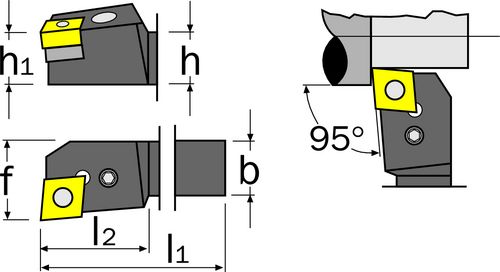

Specification :
Brand : Indexa
Designation PCLN…. : R 2525M
Dimensions b : 25
Dimensions f : 32
Dimensions h=h1Â :Â 25
Dimensions l1Â :Â 150
Dimensions l2Â :Â 28
eCl@ss Code : 28039190
Overall Weight : 0.745
Supplier Part No. : 106-2040
UNSPSC Code : 23242106
Weight each : 742g
