PCLNR 2020K12 EXTERNAL TOOLHOLDER
Rp1.498.000
Indexa Lever Lock External Toolholders – PCLN R/L
95° approach for negative 80° rhombic inserts.
Out of stock
SKUÂ :Â IND1062000K
Indexa Lever Lock External Toolholders – PCLN R/L
95° approach for negative 80° rhombic inserts.

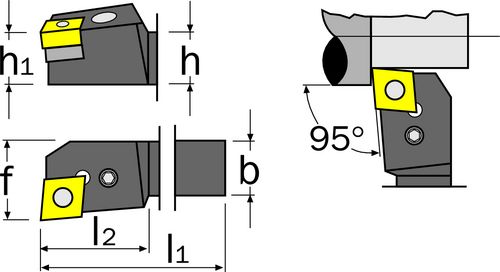

Specification :
Brand : Indexa
Designation PCLN…. : R 2020K
Dimensions b : 20
Dimensions f : 25
Dimensions h=h1Â :Â 20
Dimensions l1Â :Â 125
Dimensions l2Â :Â 28
eCl@ss Code : 28039190
Overall Weight : 0.39
Supplier Part No. : 106-2000
UNSPSC Code : 23242106
Weight each : 404g
