PCLNL 2525M12 EXTERNAL TOOLHOLDER
Rp1.584.000
Indexa Lever Lock External Toolholders – PCLN R/L
95° approach for negative 80° rhombic inserts.
Out of stock
SKU : IND1062050K
Indexa Lever Lock External Toolholders – PCLN R/L
95° approach for negative 80° rhombic inserts.
Specification :
Brand : Indexa

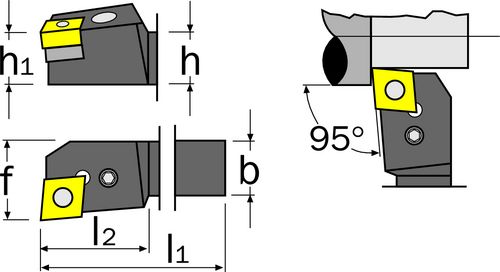

Designation PCLN…. : L 2525M
Dimensions b : 25
Dimensions f : 32
Dimensions h=h1 : 25
Dimensions l1 : 150
Dimensions l2 : 28
eCl@ss Code : 28039190
Overall Weight : 0.725
Supplier Part No. : 106-2050
UNSPSC Code : 23242106
Weight each : 738g
| Weight | 1 kg |
|---|
