PCLNL 2020K12 EXTERNAL TOOLHOLDER
Rp1.498.000
Indexa Lever Lock External Toolholders – PCLN R/L
95° approach for negative 80° rhombic inserts.
5 in stock
SKU : IND1062010K
Indexa Lever Lock External Toolholders – PCLN R/L
95° approach for negative 80° rhombic inserts.
Specification :
Brand : Indexa

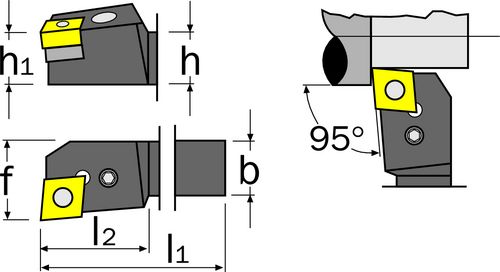

Designation PCLN…. : L 2020K
Dimensions b : 20
Dimensions f : 25
Dimensions h=h1 : 20
Dimensions l1 : 125
Dimensions l2 : 28
eCl@ss Code : 28039190
Overall Weight : 0.39
Supplier Part No. : 106-2010
UNSPSC Code : 23242106
Weight each : 404g
| Weight | 1 kg |
|---|
