PCBNR 2525M12 EXTERNAL TOOLHOLDER
Indexa Lever Lock External Toolholders – PCBN R/L
75° approach for negative 80° rhombic inserts.
Out of stock
SKUÂ :Â IND1061762K
Indexa Lever Lock External Toolholders – PCBN R/L
75° approach for negative 80° rhombic inserts.

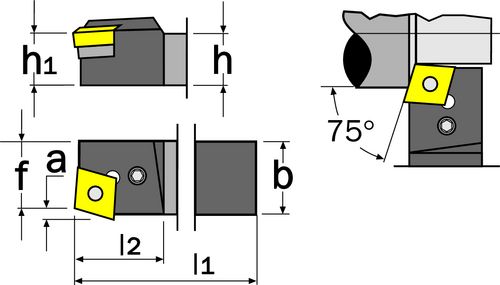

Specification :
Brand : Indexa
Designation PCBN…. : R 2525M
Dimensions a : 3.1
Dimensions b : 25
Dimensions f : 22
Dimensions h=h1Â :Â 25
Dimensions l1Â :Â 150
Dimensions l2Â :Â 28
eCl@ss Code : 28039190
Overall Weight : 0.74
UNSPSC Code : 23242106
Weight each : 730g
| Weight | 1 kg |
|---|
