PCBNL 2525M12 EXTERNAL TOOLHOLDER
Indexa Lever Lock External Toolholders – PCBN R/L
75° approach for negative 80° rhombic inserts.
Out of stock
SKU : IND1061763K
Indexa Lever Lock External Toolholders – PCBN R/L
75° approach for negative 80° rhombic inserts.
Specification :
Brand : Indexa

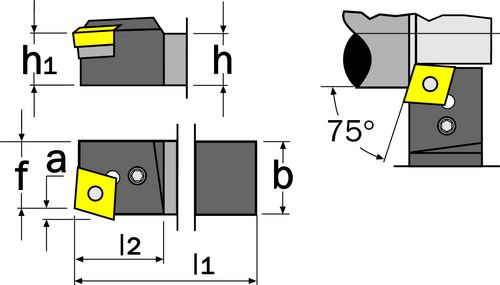

Designation PCBN…. : L 2525M 12
Dimensions a : 3.1
Dimensions b : 25
Dimensions f : 22
Dimensions h=h1 : 25
Dimensions l1 : 150
Dimensions l2 : 28
eCl@ss Code : 28039190
Overall Weight : 0.705
UNSPSC Code : 23242106
Weight each : 725g
| Weight | 1 kg |
|---|
