No.25 16x16mm R/H HSS BUTT WELDED LATHE TOOL
Rp1.144.000

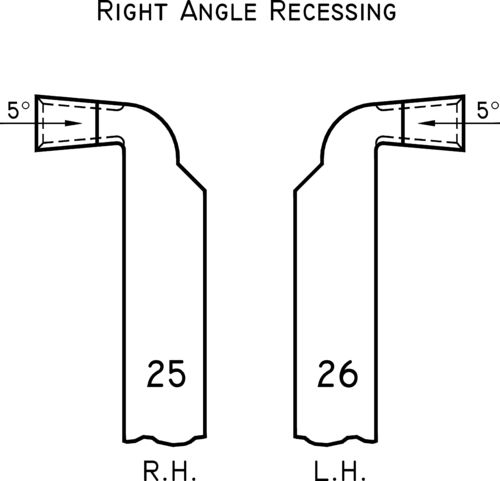

Butt-Welded Lathe Tools – No.25RH
Right Angle Recessing
Manufactured from top quality sintered steels. For use on a wide range of applications from roughing to finishing. Manufactured to BS1296:Part 3:1978.
Shape No.25RH – Rake & Clearance Angles
Top Rake: 5°. Front Clearance: 6°. Approach Angle: 0°. Trail Angle: 2°. Side Clearance: 3°. Corner Radius: -°.
Out of stock
SKU : KEN0106160K
Butt-Welded Lathe Tools – No.25RH
Right Angle Recessing
Manufactured from top quality sintered steels. For use on a wide range of applications from roughing to finishing. Manufactured to BS1296:Part 3:1978.
Shape No.25RH – Rake & Clearance Angles
Top Rake: 5°. Front Clearance: 6°. Approach Angle: 0°. Trail Angle: 2°. Side Clearance: 3°. Corner Radius: -°.
Specification :
Brand : Kennedy Industrial
eCl@ss Code : 21010901
Overall Depth : 16
Overall Length : 110
Overall Weight : 0.22
Overall Width : 16
Shank (mm) : 16 x 16
UNSPSC Code : 23242300
| Weight | 1 kg |
|---|
