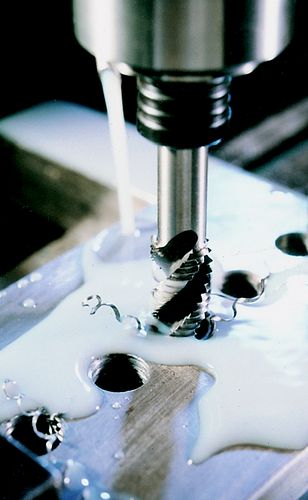

No.12×28 UNF HSS GT SPIRAL POINT TAP
UNF (Unified Fine) HSS Ground Thread Taps
Spiral Point/Gun Nose
Out of stock
SKU : SHR0851100E
UNF (Unified Fine) HSS Ground Thread Taps
Spiral Point/Gun Nose
Specification :
Brand : Sherwood
eCl@ss Code : 21010210
Shank Diameter : 5.60
Size – Pitch : No.12 x 28
Square A/F : 4.50
UNSPSC Code : 27112806
Weight each : 11g
| Weight | 1 kg |
|---|
