No.1 16x16mm R/H HSS BUTT WELDED LATHE TOOL
Rp903.000
Butt-Welded Lathe Tools – No.1RH
Light Turning & Facing – Right Hand
Manufactured from top quality sintered steels. For use on a wide range of applications from roughing to finishing. Manufactured to BS1296:Part 3:1978.

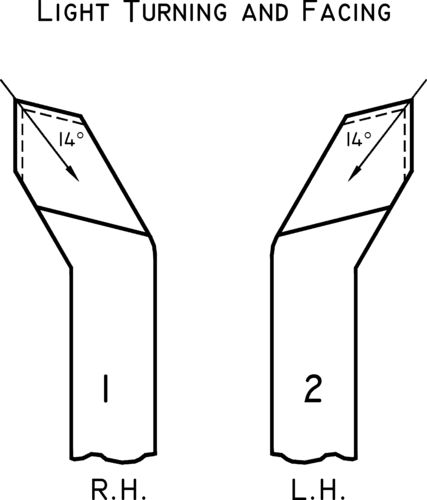

Shape No.1RH – Rake & Clearance Angles
Top Rake: 14°. Front Clearance: 6°. Approach Angle: -2°. Trail Angle: 15°. Side Clearance: 6°. Corner Radius: -.
Out of stock
SKU : KEN0100160K
Butt-Welded Lathe Tools – No.1RH
Light Turning & Facing – Right Hand
Manufactured from top quality sintered steels. For use on a wide range of applications from roughing to finishing. Manufactured to BS1296:Part 3:1978.
Shape No.1RH – Rake & Clearance Angles
Top Rake: 14°. Front Clearance: 6°. Approach Angle: -2°. Trail Angle: 15°. Side Clearance: 6°. Corner Radius: -.
Specification :
Brand : Kennedy Industrial
eCl@ss Code : 21010901
Overall Depth : 16
Overall Length : 115
Overall Weight : 0.215
Overall Width : 16
Shank (mm) : 16 x 16
UNSPSC Code : 23242300
| Weight | 1 kg |
|---|
