NCD332 AC VOLTAGE DETECTOR

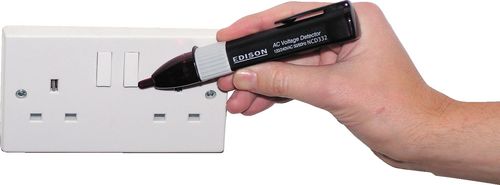

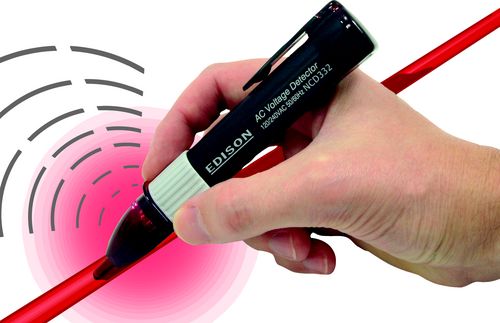

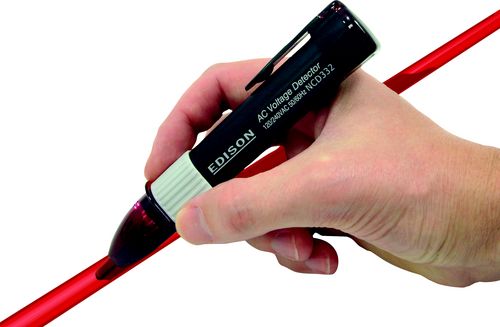

Edison Non-Contact AC Voltage Detector

Non-contact voltage detector without the need to disconnect the conductor/ appliance. Flashing light and audible indication of AC voltages of 100 to 240V. Quick and accurate detection of cable breaks, blown fuses and distinguish between live, neutral wires in single and three phase supplies.
Voltage sensitivity: 100 to 240V AC.
Frequency: 50/60Hz.
Over voltage category: Cat III 600V.
Detection distance: <5mm.
Operating temperature: 32 to 122°F (0 to 50°C).
Storage temperature: -4 to 140°F (-20 to 60°C).
Humidity: <85%RH.
Power: batteries x2, 1.5V (AAA). (EDI -904- 3040K). (Not supplied).

Out of stock

SKU : EDI5162000K

Edison Non-Contact AC Voltage Detector

Non-contact voltage detector without the need to disconnect the conductor/ appliance. Flashing light and audible indication of AC voltages of 100 to 240V. Quick and accurate detection of cable breaks, blown fuses and distinguish between live, neutral wires in single and three phase supplies.
Voltage sensitivity: 100 to 240V AC.
Frequency: 50/60Hz.
Over voltage category: Cat III 600V.
Detection distance: <5mm.
Operating temperature: 32 to 122°F (0 to 50°C).
Storage temperature: -4 to 140°F (-20 to 60°C).
Humidity: <85%RH.
Power: batteries x2, 1.5V (AAA). (EDI -904- 3040K). (Not supplied).

Specification :
Brand : Edison
eCl@ss Code : 27371801
Model Number : NCD332
Overall Depth : 25
Overall Length : 210
Overall Weight : 0.054
Overall Width : 76
Supplier Part No. : 630201
UNSPSC Code : 41111903
WEEE Compliant : Yes
Weight each : 26g

Weight 1 kg
SKU: EDI5162000K Categories: , ,
