MWLNR 2525M08 EXTERNAL TOOLHOLDER
Rp1.584.000
Indexa Combination Top Clamp & Pinlock External Toolholders – MWLN R/L

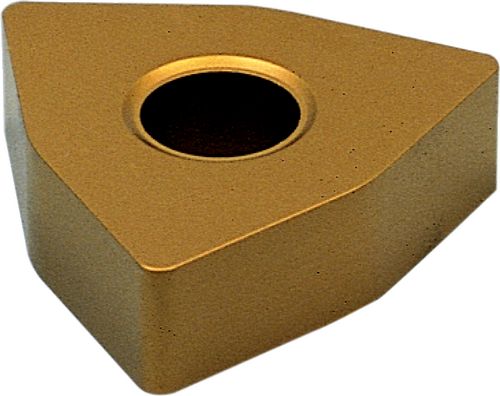

95° approach for negative 80° trigon inserts.
Out of stock
SKU : IND1061700K
Indexa Combination Top Clamp & Pinlock External Toolholders – MWLN R/L
95° approach for negative 80° trigon inserts.
Specification :
Brand : Indexa

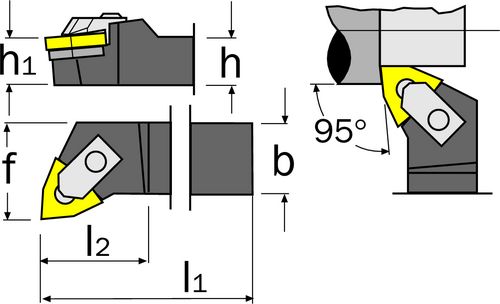

Designation MWLN…. : R 2525M
Dimensions b : 25
Dimensions f : 32
Dimensions h=h1 : 25
Dimensions l1 : 150
Dimensions l2 : 34
eCl@ss Code : 28039190
Overall Weight : 0.755
Supplier Part No. : 106-1700
UNSPSC Code : 23242106
Weight each : 789g
| Weight | 1 kg |
|---|
