MWLNR 2020K08 EXTERNAL TOOLHOLDER
Rp1.498.000
Indexa Combination Top Clamp & Pinlock External Toolholders – MWLN R/L

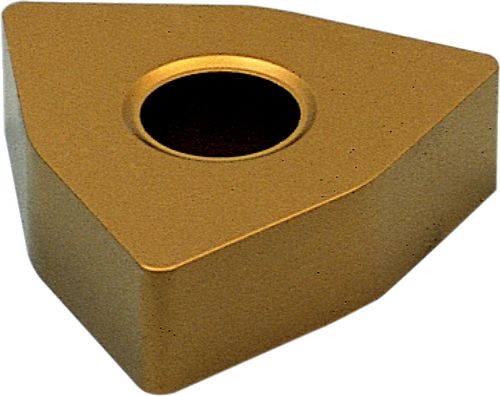

95° approach for negative 80° trigon inserts.
Out of stock
SKU : IND1061680K
Indexa Combination Top Clamp & Pinlock External Toolholders – MWLN R/L
95° approach for negative 80° trigon inserts.
Specification :
Brand : Indexa

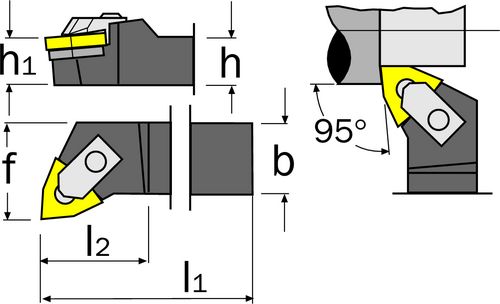

Designation MWLN…. : R 2020K
Dimensions b : 20
Dimensions f : 25
Dimensions h=h1 : 20
Dimensions l1 : 125
Dimensions l2 : 34
eCl@ss Code : 28039190
Overall Weight : 0.435
Supplier Part No. : 106-1680
UNSPSC Code : 23242106
Weight each : 453g
| Weight | 1 kg |
|---|
