MWLNL 2525M08 EXTERNAL TOOLHOLDER
Rp1.584.000
Indexa Combination Top Clamp & Pinlock External Toolholders – MWLN R/L

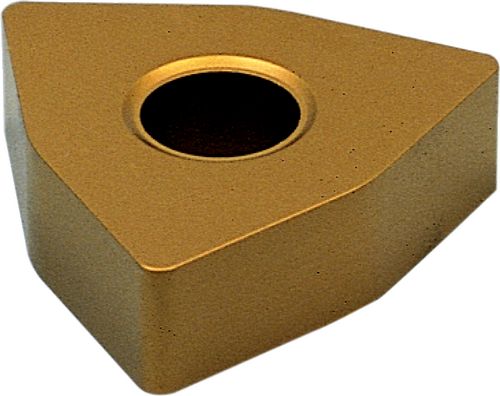

95° approach for negative 80° trigon inserts.
Out of stock
SKU : IND1061710K
Indexa Combination Top Clamp & Pinlock External Toolholders – MWLN R/L
95° approach for negative 80° trigon inserts.
Specification :
Brand : Indexa
Designation MWLN…. : L 2525M

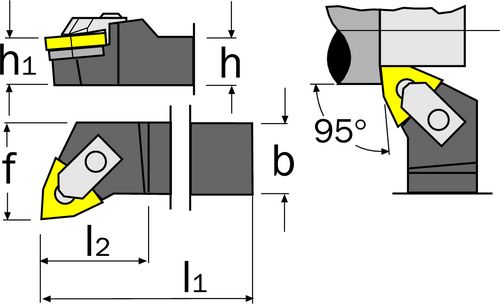

Dimensions b : 25
Dimensions f : 32
Dimensions h=h1 : 25
Dimensions l1 : 150
Dimensions l2 : 34
eCl@ss Code : 28039190
Overall Weight : 0.75
Supplier Part No. : 106-1710
UNSPSC Code : 23242106
Weight each : 776g
| Weight | 1 kg |
|---|
