MVVNN 2525M16 EXTERNAL TOOLHOLDER
Indexa Combination Top Clamp & Pinlock External Toolholders – MVVN N

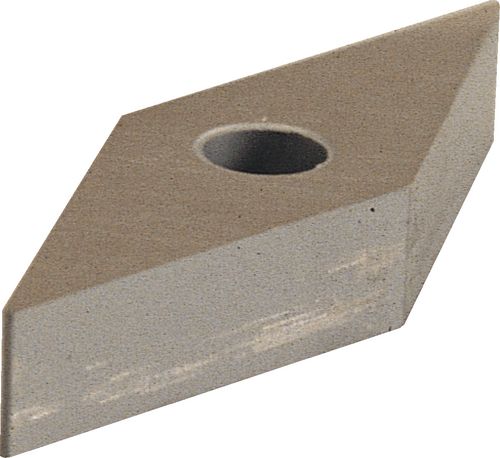

72.5° approach for negative 35° rhombic inserts.
Out of stock
SKU : IND1061600K
Indexa Combination Top Clamp & Pinlock External Toolholders – MVVN N
72.5° approach for negative 35° rhombic inserts.

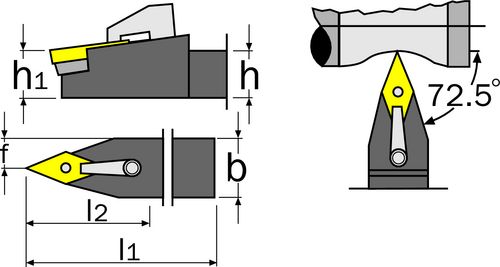

Specification :
Brand : Indexa
Designation MVVN…. : N 2525M 16
Dimensions b : 25
Dimensions f : 12.5
Dimensions h=h1 : 25
Dimensions l1 : 150
Dimensions l2 : 48
eCl@ss Code : 28039190
Overall Weight : 0.64
Supplier Part No. : 106-1600
UNSPSC Code : 23242106
Weight each : 675g
