MVVNN 2020K16 EXTERNAL TOOLHOLDER
Indexa Combination Top Clamp & Pinlock External Toolholders – MVVN N
72.5° approach for negative 35° rhombic inserts.
Out of stock
SKU : IND1061580K
Indexa Combination Top Clamp & Pinlock External Toolholders – MVVN N
72.5° approach for negative 35° rhombic inserts.

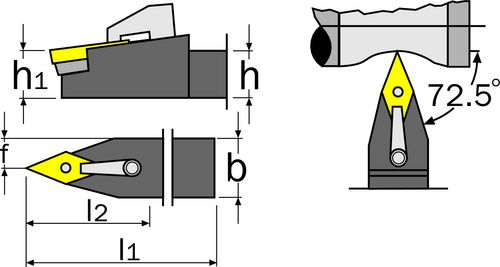

Specification :
Brand : Indexa
Designation MVVN…. : N 2020K 16
Dimensions b : 20
Dimensions f : 10.0
Dimensions h=h1 : 20
Dimensions l1 : 125
Dimensions l2 : 48
eCl@ss Code : 28039190
Overall Weight : 0.355
Supplier Part No. : 106-1580
UNSPSC Code : 23242106
Weight each : 379g
