MVJNL 2525M16 EXTERNAL TOOLHOLDER
Rp1.821.000
Indexa Combination Top Clamp & Pinlock External Toolholders – MVJN R/L

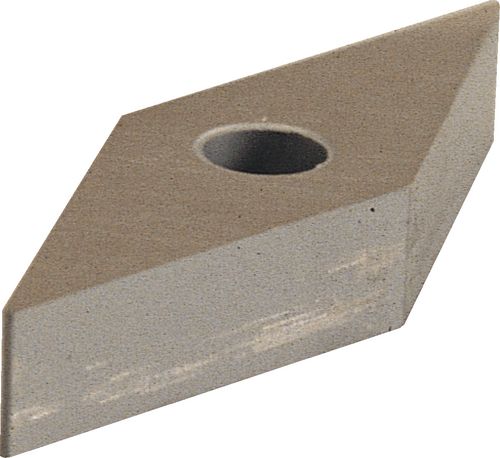

93° approach for negative 35° rhombic inserts.
Out of stock
SKU : IND1061530K
Indexa Combination Top Clamp & Pinlock External Toolholders – MVJN R/L
93° approach for negative 35° rhombic inserts.
Specification :
Brand : Indexa

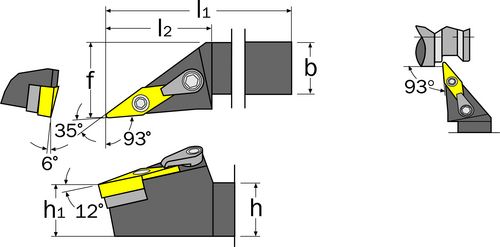

Designation MVJN…. : L 2525M
Dimensions b : 25
Dimensions f : 32
Dimensions h=h1 : 25
Dimensions l1 : 150
Dimensions l2 : 37
eCl@ss Code : 28039190
Overall Weight : 0.665
Supplier Part No. : 106-1530
UNSPSC Code : 23242106
Weight each : 688g
| Weight | 1 kg |
|---|
