MVJNL 2020K16 EXTERNAL TOOLHOLDER
Rp1.722.000
Indexa Combination Top Clamp & Pinlock External Toolholders – MVJN R/L
93° approach for negative 35° rhombic inserts.
Out of stock
SKU : IND1061510K
Indexa Combination Top Clamp & Pinlock External Toolholders – MVJN R/L
93° approach for negative 35° rhombic inserts.
Specification :
Brand : Indexa

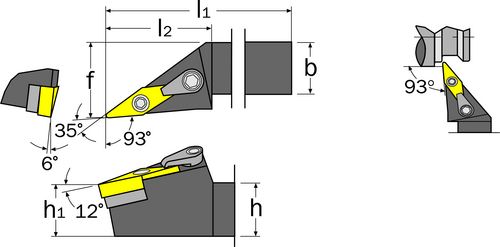

Designation MVJN…. : L 2020K
Dimensions b : 20
Dimensions f : 25
Dimensions h=h1 : 20
Dimensions l1 : 125
Dimensions l2 : 37
eCl@ss Code : 28039190
Overall Weight : 0.375
Supplier Part No. : 106-1510
UNSPSC Code : 23242106
Weight each : 398g
| Weight | 1 kg |
|---|
