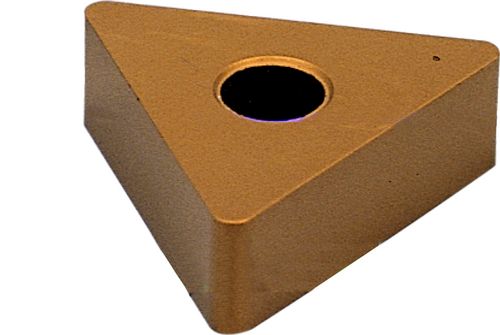

MTJNR 2525M16 EXTERNAL TOOLHOLDER
Rp1.584.000
Indexa Combination Top Clamp & Pinlock External Toolholders – MTJN R
93° approach for negative triangular inserts.
Out of stock
SKU : IND1061320K
Indexa Combination Top Clamp & Pinlock External Toolholders – MTJN R
93° approach for negative triangular inserts.
Specification :
Brand : Indexa

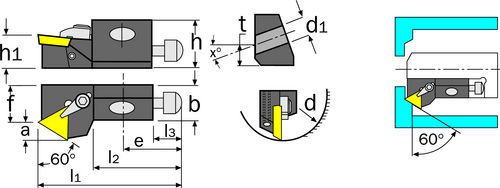

Designation MTJN…. : R 2525M
Dimensions b : 25 | mm
Dimensions f : 32
Dimensions h=h1 : 25
Dimensions l1 : 150
Dimensions l2 : 34
eCl@ss Code : 28039190
Overall Weight : 0.725
Supplier Part No. : MTJNR 2525M16
UNSPSC Code : 23242106
Weight each : 753g
