MINI METAL WORKING LATHE300mm BETWEEN CENTRES

Mini Metalworking Lathe

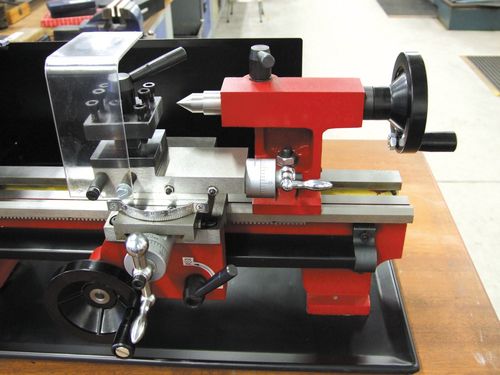

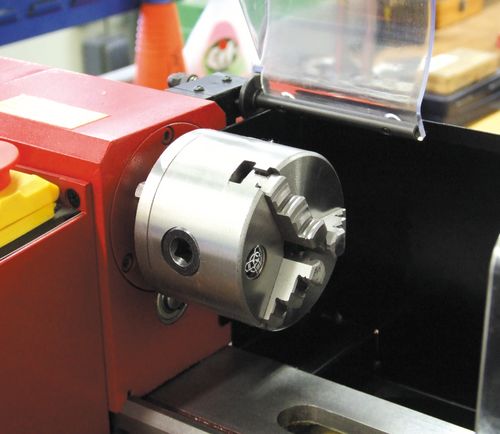

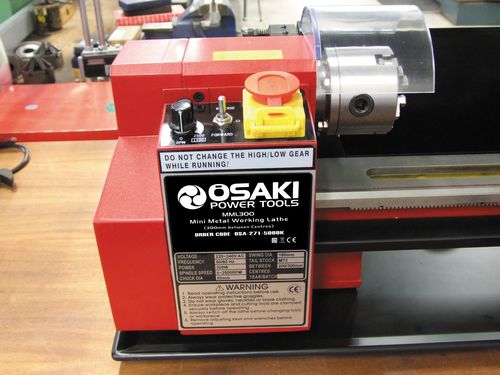

This little gem is ideal for model-making etc. Supplied with a self-centring three jaw chuck, four-way tool post, swarf tray, rear splash guard, emergency stop button and chuck guard. A variety of useful accessories are available (see list). Manufactured to meet European Machinery Directive 98/37/EC and is both CE and RoSH compliant.
Specifications:
Swing over bed: 180mm.
Distance between centres: 300mm.
Hole through spindle: 20mm.
Spindle taper: MT#3.
Tailstock taper: MT#2.
Spindle speed:
Low range: 0 – 1100rpm ±10%.
High range: 0 – 2500rpm ±10%.
Output power: 250W.
Range of threads: metric 0.4 -2.00mm
(10 thread pitches) or inch 12 – 52 TP
(8 thread pitches).
Net/gross weight: 37/40kg.
Packing size: 770 x 330 x 330mm.

Out of stock

SKU : OSA2715000K

Mini Metalworking Lathe

This little gem is ideal for model-making etc. Supplied with a self-centring three jaw chuck, four-way tool post, swarf tray, rear splash guard, emergency stop button and chuck guard. A variety of useful accessories are available (see list). Manufactured to meet European Machinery Directive 98/37/EC and is both CE and RoSH compliant.
Specifications:
Swing over bed: 180mm.
Distance between centres: 300mm.
Hole through spindle: 20mm.
Spindle taper: MT#3.
Tailstock taper: MT#2.
Spindle speed:
Low range: 0 – 1100rpm ±10%.
High range: 0 – 2500rpm ±10%.
Output power: 250W.
Range of threads: metric 0.4 -2.00mm
(10 thread pitches) or inch 12 – 52 TP
(8 thread pitches).
Net/gross weight: 37/40kg.
Packing size: 770 x 330 x 330mm.

Specification :
Brand : Osaki Power Tools
Description : Mini Lathe
eCl@ss Code : 36600390
Motor : 250W
Overall Depth : 330
Overall Length : 770
Overall Weight : 40
Overall Width : 330
Supplier Part No. : –
UNSPSC Code : 23101513
Volts : 240
WEEE Compliant : Yes

Weight 1 kg
