METRIC INT/EXT THREAD RESTORER
Rp931.000
Thread Restoring Files

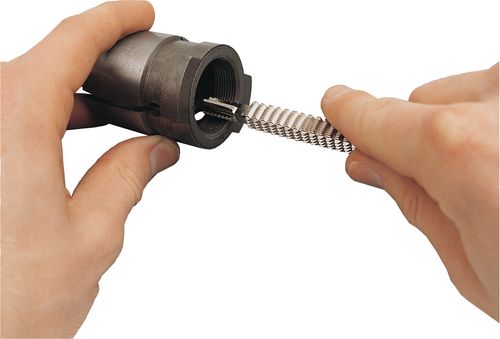

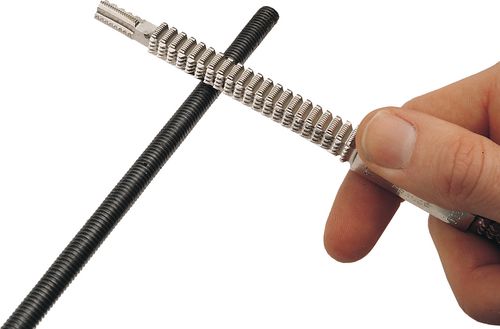

Restore internal and external threads by filing, where the use of taps and dies are impractical. The restorer file overlaps several good threads and files the damaged ones. Restore right and left hand, internal and external threads. Long lasting, fast cutting teeth. Thread restoring files are available in ISO, Whit/BSF, UNF/UNC and BSP thread types.
3 in stock
SKU : SHR0179020C
Thread Restoring Files
Restore internal and external threads by filing, where the use of taps and dies are impractical. The restorer file overlaps several good threads and files the damaged ones. Restore right and left hand, internal and external threads. Long lasting, fast cutting teeth. Thread restoring files are available in ISO, Whit/BSF, UNF/UNC and BSP thread types.
Specification :
Brand : Sherwood
eCl@ss Code : 21019190
Overall Depth : 15
Overall Length : 230
Overall Weight : 0.12
Overall Width : 15
Range : .80 to 3mm
Thread Type : ISO
UNSPSC Code : 27111932
Weight each : 133g
| Weight | 1 kg |
|---|
