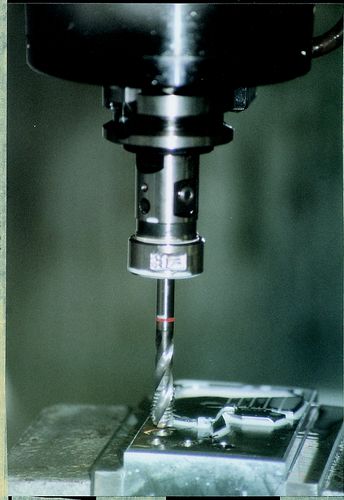

M8x1.25 RED RING SP/PT DIN 371 HSS-EV BRT TAP
HSS âRed Ringâ Taps
Manufactured to DIN 371/376
Suitable for the following Material Groups
Spiral Point/Gun Nose –
HSS-Co Bright Finish
For through holes.
Taper lead to DIN form B
(3.5 x P to 5.5 x P).
Tapping tolerance to 6HX.
ISO Metric Coarse
Out of stock
SKU : SWT1851027R
HSS âRed Ringâ Taps
Manufactured to DIN 371/376
Suitable for the following Material Groups
Spiral Point/Gun Nose –
HSS-Co Bright Finish
For through holes.
Taper lead to DIN form B
(3.5 x P to 5.5 x P).
Tapping tolerance to 6HX.
ISO Metric Coarse
Specification :
Brand : Swiss Tech
eCl@ss Code : 21010210
Overall Length (mm) : 90
Shank Diameter (mm) : 8.0
Size – Pitch (mm) : M8.0 x 1.25
Square A/F : 6.2
Thread Length (mm) : 22
UNSPSC Code : 27112806
Weight each : 32g
| Weight | 1 kg |
|---|
