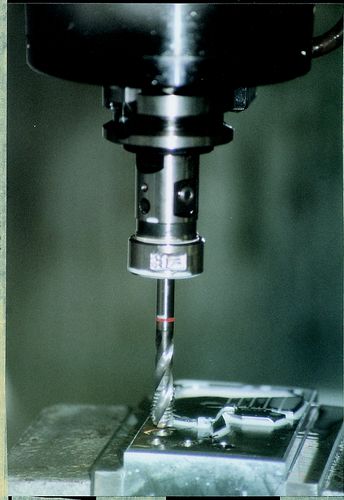

M8x1.25 RED RING SP/FL DIN 371 HSS-EV OX TAP
Spiral Flute – HSS-EV
Oxidised Finish
For blind holes.
Taper lead to DIN form C (3 x P).
Tapping tolerance:
spiral flute to 6H.
ISO Metric Coarse
Helix angle 40°. Tapping depth 2.5 x D.
Out of stock
SKU : SWT1851527R
Spiral Flute – HSS-EV
Oxidised Finish
For blind holes.
Taper lead to DIN form C (3 x P).
Tapping tolerance:
spiral flute to 6H.
ISO Metric Coarse
Helix angle 40°. Tapping depth 2.5 x D.
Specification :
Brand : Swiss Tech
eCl@ss Code : 21010210
Overall Length (mm) : 90
Shank Diameter (mm) : 8.0
Size – Pitch (mm) : M8.0 x 1.25
Square A/F : 6.2
Thread Length (mm) : 12
UNSPSC Code : 27112806
Weight each : 30g
| Weight | 1 kg |
|---|
