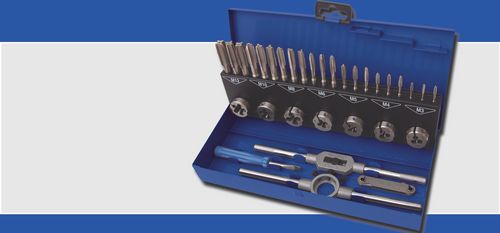

M3-M12 HSS THREADING SETIN CASE 32-PCE
Rp3.136.000
Metric
Threading Set
Metric M3 – M12

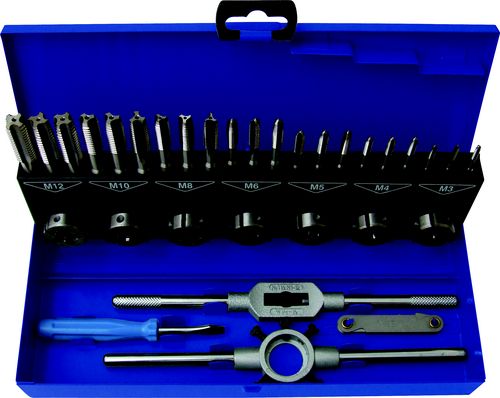

Comprehensive threading set containing machine ground HSS Taps and Dies in a metal box.
Contents:
O/D Split Dies: M3, M4, M5, M6, M8, M10 and M12.
Ground Thread Taps (1 of each, taper, second and plug lead): M3, M4, M5, M6, M8, M10 and M12.
Bar Type Tap Wrench: M1 – M12 x 210mm.
Die Stock: 25 x 9 x 210mm.
Metric Thread Pitch Gauge.
Flat Bladed Screwdriver: 6mm.
16 in stock
SKU : SEN0869980K
Metric
Threading Set
Metric M3 – M12
Comprehensive threading set containing machine ground HSS Taps and Dies in a metal box.
Contents:
O/D Split Dies: M3, M4, M5, M6, M8, M10 and M12.
Ground Thread Taps (1 of each, taper, second and plug lead): M3, M4, M5, M6, M8, M10 and M12.
Bar Type Tap Wrench: M1 – M12 x 210mm.
Die Stock: 25 x 9 x 210mm.
Metric Thread Pitch Gauge.
Flat Bladed Screwdriver: 6mm.
Specification :
Brand : Senator
eCl@ss Code : 21010210
No. of Pieces : 32
Range : M3 – M12
Supplier Part No. : C131
UNSPSC Code : 27112806
| Weight | 1 kg |
|---|
