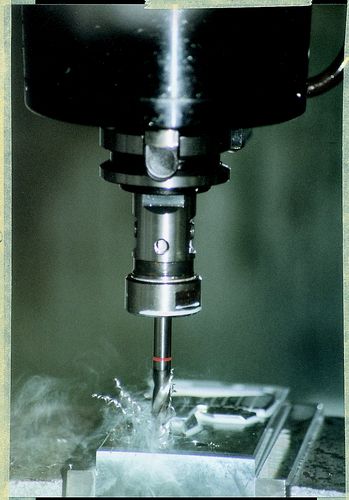

M16x2 OR. SP/FL 376 HSS-PM NIT+OX TAP
HSS ‘Orange Ring’ Taps
Spiral Flute – HSS-PM Nitride & Oxide Finish
For blind holes. Taper lead to DIN form C.
This tap has the special
chamfer lead of (3 x P).
Tapping tolerance: spiral flute to 6H.
ISO Metric Coarse Helix angle 40°. Tapping depth 2.5 x D.
Out of stock
SKUÂ :Â SWT1856039N
HSS ‘Orange Ring’ Taps
Spiral Flute – HSS-PM Nitride & Oxide Finish
For blind holes. Taper lead to DIN form C.
This tap has the special
chamfer lead of (3 x P).
Tapping tolerance: spiral flute to 6H.
ISO Metric Coarse Helix angle 40°. Tapping depth 2.5 x D.
Specification :
Brand : Swiss Tech
eCl@ss Code : 21010210
Overall Length (mm)Â :Â 110.0
Shank Diameter (mm)Â :Â 12.0
Size – Pitch (mm)Â :Â M16.0 x 2.00
Square A/FÂ :Â 9.0
Thread Length : 18.0
UNSPSC Code : 27112806
Weight each : 95g
| Weight | 1 kg |
|---|
