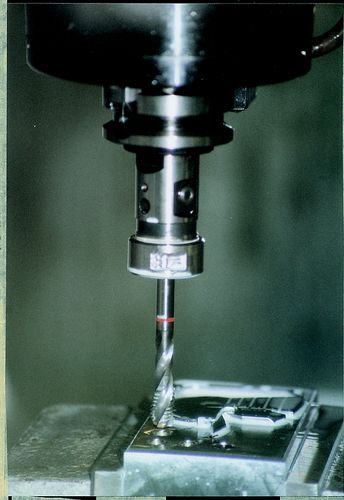

M10x1.5 RED RING SP/FL DIN 371 HSS-EV OX TAP
Spiral Flute – HSS-EV
Oxidised Finish
For blind holes.
Taper lead to DIN form C (3 x P).
Tapping tolerance:
spiral flute to 6H.
ISO Metric Coarse
Helix angle 40°. Tapping depth 2.5 x D.
Out of stock
SKUÂ :Â SWT1851530R
Spiral Flute – HSS-EV
Oxidised Finish
For blind holes.
Taper lead to DIN form C (3 x P).
Tapping tolerance:
spiral flute to 6H.
ISO Metric Coarse
Helix angle 40°. Tapping depth 2.5 x D.
Specification :
Brand : Swiss Tech
eCl@ss Code : 21010210
Overall Length (mm)Â :Â 100
Shank Diameter (mm)Â :Â 10.0
Size – Pitch (mm)Â :Â M10.0 x 1.50
Square A/FÂ :Â 8.0
Thread Length (mm)Â :Â 13
UNSPSC Code : 27112806
Weight each : 45g
| Weight | 1 kg |
|---|
