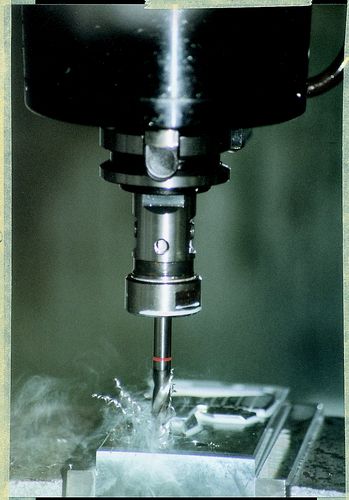

M10x1.5 OR. SP/FL 371 HSS-PM NIT+OX TAP
HSS âOrange Ringâ Taps
Spiral Flute – HSS-PM Nitride & Oxide Finish
For blind holes. Taper lead to DIN form C.
This tap has the special
chamfer lead of (3 x P).
Tapping tolerance: spiral flute to 6H.
ISO Metric Coarse Helix angle 40°. Tapping depth 2.5 x D.
Out of stock
SKU : SWT1856030N
HSS âOrange Ringâ Taps
Spiral Flute – HSS-PM Nitride & Oxide Finish
For blind holes. Taper lead to DIN form C.
This tap has the special
chamfer lead of (3 x P).
Tapping tolerance: spiral flute to 6H.
ISO Metric Coarse Helix angle 40°. Tapping depth 2.5 x D.
Specification :
Brand : Swiss Tech
eCl@ss Code : 21010210
Overall Length (mm) : 100.0
Shank Diameter (mm) : 10.0
Size – Pitch (mm) : M10.0 x 1.50
Square A/F : 8.0
Thread Length : 13.0
UNSPSC Code : 27112806
Weight each : 51g
| Weight | 1 kg |
|---|
