LCS2 LARGE CHAIN SEPARATOR

Chain Separators

All steel construction, industry quality roller and bush chain separator. Designed for separating roller and bush chains that have end softened pins. To remove hardened pins the ends must first be removed by grinding. Simple to operate: Grip the chain in the self-closing jaws that also support the chain to prevent twisting as the link pins are driven out. Then turn the T-handle to drive the pins out. Always ensure that the machine is switched off before disconnecting or connecting a chain.

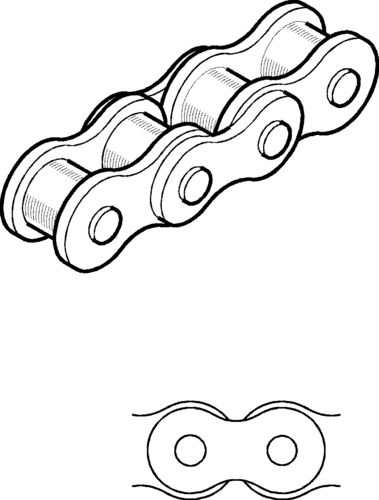

Roller Chain Pin, roller and bush assembly.
Bush Chain Identical to roller chain, but with the omission of the roller.

Model SCS1
Chain: 9.525 – 15.875mm (0.375” – 0.625”) pitch, to BS & ANSI standard.

Model LCS2
Chain: 19.05 – 31.75mm (0.75 – 1.25”) pitch, to BS standard.
Chain: 19.05 – 25.40mm (0.75 – 1.00”) pitch, to ANSI standard.

SKU : KEN5881020K

Chain Separators

All steel construction, industry quality roller and bush chain separator. Designed for separating roller and bush chains that have end softened pins. To remove hardened pins the ends must first be removed by grinding. Simple to operate: Grip the chain in the self-closing jaws that also support the chain to prevent twisting as the link pins are driven out. Then turn the T-handle to drive the pins out. Always ensure that the machine is switched off before disconnecting or connecting a chain.

Roller Chain Pin, roller and bush assembly.
Bush Chain Identical to roller chain, but with the omission of the roller.

Model SCS1
Chain: 9.525 – 15.875mm (0.375” – 0.625”) pitch, to BS & ANSI standard.

Model LCS2
Chain: 19.05 – 31.75mm (0.75 – 1.25”) pitch, to BS standard.
Chain: 19.05 – 25.40mm (0.75 – 1.00”) pitch, to ANSI standard.

Specification :
Brand : Kennedy Industrial
eCl@ss Code : 23170490
Overall Depth : 130
Overall Length : 40
Overall Weight : 0.84
Overall Width : 315
Product Number : LCS2
Supplier Part No. : –
UNSPSC Code : 27111500
Weight each : 765g

Weight 1 kg
SKU: KEN5881020K Categories: , , ,
