KEYWAY BURR HAND DEBURRING TOOL

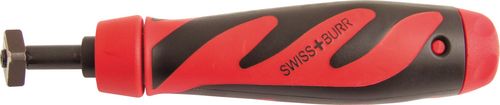

SwissBurr KB3 Keyway Burr Hand Deburring Set
SwissBurr hand deburring tools are a fast effective and efficient way of deburring holes, slots and edges. Swiss Burr is a totally modular system of interchangeable handles, holders and blades designed to cover all applications. A choice of HSS or carbide blades, countersinks and scrapers are available to suit your specific application. Swiss Burr blades are also interchangeable with commonly available brands including Kennedy, Noga, Ruko, Seco, Snap-Tap and Stellram.
3 Piece Set
For deburring and cleaning edges of internal and external keyways and slots up to 15mm.
The KB3 set contains: SWISS+BURR⢠1x ergonomic handle, 1x blade holder and 1x N80K blade.
Out of stock
SKU : SWT1092500M
SwissBurr KB3 Keyway Burr Hand Deburring Set
SwissBurr hand deburring tools are a fast effective and efficient way of deburring holes, slots and edges. Swiss Burr is a totally modular system of interchangeable handles, holders and blades designed to cover all applications. A choice of HSS or carbide blades, countersinks and scrapers are available to suit your specific application. Swiss Burr blades are also interchangeable with commonly available brands including Kennedy, Noga, Ruko, Seco, Snap-Tap and Stellram.
3 Piece Set
For deburring and cleaning edges of internal and external keyways and slots up to 15mm.
The KB3 set contains: SWISS+BURR⢠1x ergonomic handle, 1x blade holder and 1x N80K blade.
Specification :
Brand : Swiss And Burr
Description : KB3 – 3 Piece Set
eCl@ss Code : 21040803
No. of Pieces : 3
Overall Weight : 0.083
Supplier Part No. : 3SG—-I
UNSPSC Code : 27111526
| Weight | 1 kg |
|---|
