INFRARED THERMOMETER

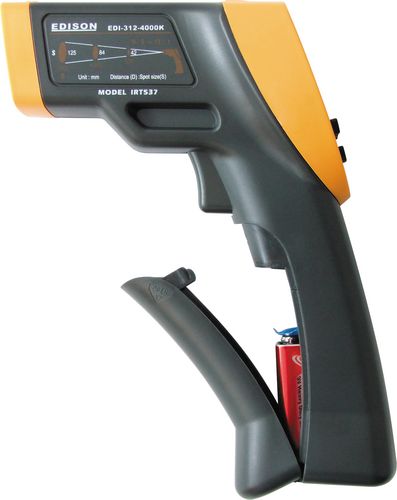

Edison Infrared Laser Thermometer with Laser Targetting
IRT537
A high resolution infrared laser thermometer suitable for a wide range of industrial applications, HVAC and automotive diagnostics. The laser targeting enables accurate readings by guiding the user to the optimum measuring distance. Ideally suited for work in confined spaces and where accuracy is required such as on circuit boards, air-con units or in engine compartments. Simply aim at the target object, pull the trigger mechanism and read the current surface temperature from the LCD display. If necessary the laser can be activated via the laser button for more accurate targetting.
Temperature is displayed on back-lit LCD display and features hold function for ease of use.
Measurement range: -20C to 537C.
Accuracy: -20C to 50C /- 2.5C 51C to 537C /-(Reading x 1% 1C).
D/S ratio: 12:1.
Emissivity: 0.95.
Celsius/Fahrenheit display selection.
Back light display.
Power source: 9V battery.
Average/maximum/minimum/maximum-minimum mode selection.
Complies with EN61326:1997/A1:1998/ A2:2001/A3:2003.
Dimensions (L x W x H): 162 x 56 x 190mm.
Nett weight: 270g.
Out of stock
SKU : EDI3124000K
Edison Infrared Laser Thermometer with Laser Targetting
IRT537
A high resolution infrared laser thermometer suitable for a wide range of industrial applications, HVAC and automotive diagnostics. The laser targeting enables accurate readings by guiding the user to the optimum measuring distance. Ideally suited for work in confined spaces and where accuracy is required such as on circuit boards, air-con units or in engine compartments. Simply aim at the target object, pull the trigger mechanism and read the current surface temperature from the LCD display. If necessary the laser can be activated via the laser button for more accurate targetting.
Temperature is displayed on back-lit LCD display and features hold function for ease of use.
Measurement range: -20C to 537C.
Accuracy: -20C to 50C /- 2.5C 51C to 537C /-(Reading x 1% 1C).
D/S ratio: 12:1.
Emissivity: 0.95.
Celsius/Fahrenheit display selection.
Back light display.
Power source: 9V battery.
Average/maximum/minimum/maximum-minimum mode selection.
Complies with EN61326:1997/A1:1998/ A2:2001/A3:2003.
Dimensions (L x W x H): 162 x 56 x 190mm.
Nett weight: 270g.
Specification :
Brand : Edison
Description : Infrared Thermometer
Model Number : IRT537
Overall Depth : 70
Overall Length : 140
Overall Weight : 0.405
Overall Width : 240
Supplier Part No. : IRT537
UNSPSC Code : 41112224
WEEE Compliant : Yes
| Weight | 1 kg |
|---|
