FC02 M16 SERRATED BALL END

Name: FC02 M16 SERRATED BALL END
SKU: IND4252015R
Availability: OutOfStock

Clamp Fixture Components: FC02 – Serrated Ball End

FC02 – Serrated Ball End
Precision swivel ball that can be used either as a contact bolt or rest pad. As contact pads these swivel ball units are ideal for evenly distributing clamping pressure on sloped or uneven surfaces.
Material:
Body – Medium Carbon Steel.
Ball – Through Hardened Steel EN 31.
Hardness:
Bolt – HRC 35.
Ball – HRC 62.
Surface Finish: Black Oxide.

Out of stock

Description
Additional information

SKU : IND4252015R

Clamp Fixture Components: FC02 – Serrated Ball End

FC02 – Serrated Ball End
Precision swivel ball that can be used either as a contact bolt or rest pad. As contact pads these swivel ball units are ideal for evenly distributing clamping pressure on sloped or uneven surfaces.
Material:
Body – Medium Carbon Steel.
Ball – Through Hardened Steel EN 31.
Hardness:
Bolt – HRC 35.
Ball – HRC 62.
Surface Finish: Black Oxide.

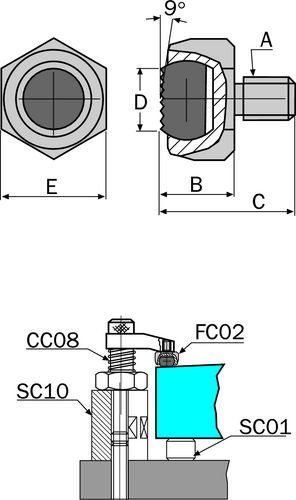

Specification :
A (Thread) : M16 x 2.00
Brand : Indexa
Dim B : 26
Dim C : 42
Dim D : 14
Dim E : 27
eCl@ss Code : 23149090
Product Number : FC010216
Supplier Part No. : FC02
UNSPSC Code : 23153402
Weight each : 0.14kg
