ELECTRONIC TACHOMETER
Edison Electronic Tachometer
TNC150
Precise red LED light source (laser beam) together with a reflective strip, non-contact measurements can be made safely up to 40cm (15 3/4″) from the target. For measuring in rpm and rps.
Testing range: 100 to 30000rpm/1.7 to 500rps.
6 digit clear LCD display with optional back light. Data hold function. Auto power ‘OFF’ & low power indicator. Battery operated: DC1.5V 3x AAA (included).
Conforms with EN61326-6: 2006 and EN61326-2-2: 2006.

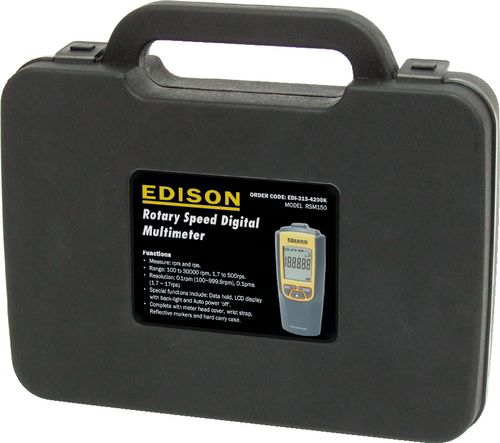

Pack includes: Digital Tachometer. 2x 30cm Reflective Strips. Wrist strap. Hard carry case. DC1.5V x3 AAA batteries (installed). Instruction manual.
Picture descriptions:

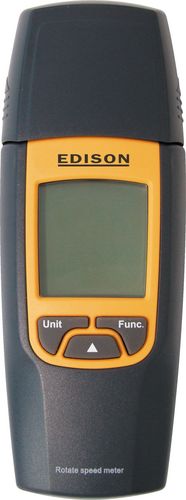

Actual size of LCD
Test for regular rotary speed
Laser beam accuracy
Complete with protective head cover
Out of stock
SKU : EDI3154200K
Edison Electronic Tachometer
TNC150
Precise red LED light source (laser beam) together with a reflective strip, non-contact measurements can be made safely up to 40cm (15 3/4″) from the target. For measuring in rpm and rps.
Testing range: 100 to 30000rpm/1.7 to 500rps.
6 digit clear LCD display with optional back light. Data hold function. Auto power ‘OFF’ & low power indicator. Battery operated: DC1.5V 3x AAA (included).
Conforms with EN61326-6: 2006 and EN61326-2-2: 2006.
Pack includes: Digital Tachometer. 2x 30cm Reflective Strips. Wrist strap. Hard carry case. DC1.5V x3 AAA batteries (installed). Instruction manual.
Picture descriptions:
Actual size of LCD

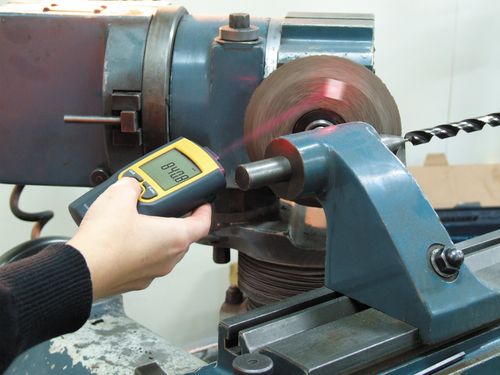

Test for regular rotary speed

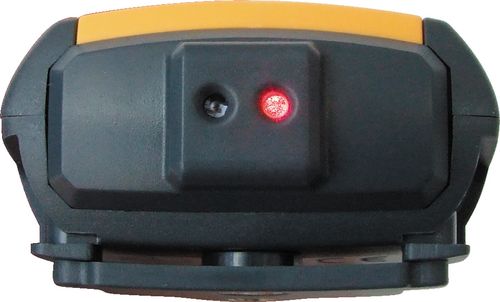

Laser beam accuracy
Complete with protective head cover
Specification :
Brand : Edison
eCl@ss Code : 21160109
Model Number : TNC150
Range : 100 to 30000 Rpm
Supplier Part No. : VA8030
UNSPSC Code : 41112802
WEEE Compliant : Yes
| Weight | 1 kg |
|---|
