ELECTRICIANS HOLESAW KIT IN PLASTIC CASE
Rp1.506.000
Variable Pitch Bi-Metal HSS Holesaw Kits
For producing high quality holes in wood, steel, brass, bronze, cast iron, aluminium and plastic. Featuring a very aggressive cutting action and M3 HSS cutting teeth to give a very smooth finish. Cuts up to 40% faster then constant pitch saws. The varying tooth pitch gives substantial reductions in noise by disrupting harmonics produced when sawing materials such as tubing, angle etc. Improved swarf clearance is also achieved requiring less effort to complete each cut. Tooth life is greatly extended, as is battery life when used with a cordless drill. Suitable for all uses: engineering, construction and maintenance. 4 to 6 teeth per inch. 28.5mm (1 1/8â) cutting depth.
Electricianâs Kit – 9 Pieces

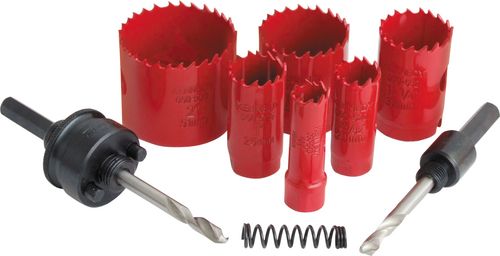

Comprises of 16, 20, 25, 32, 40 and 51mm variable pitch bi-metal high speed steel holesaws with hardened cutting edges, K7 Spring, K1 and K10 arbors with pilot drills.

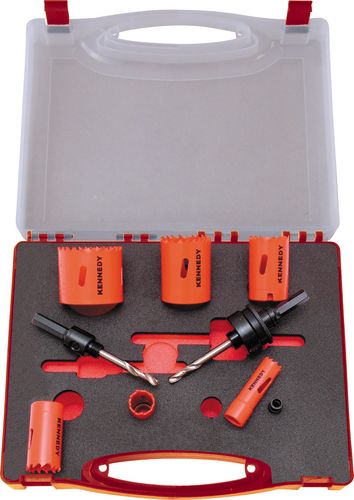

Supplied in a robust plastic carry case.
2 in stock
SKU : KEN0502300K
Variable Pitch Bi-Metal HSS Holesaw Kits
For producing high quality holes in wood, steel, brass, bronze, cast iron, aluminium and plastic. Featuring a very aggressive cutting action and M3 HSS cutting teeth to give a very smooth finish. Cuts up to 40% faster then constant pitch saws. The varying tooth pitch gives substantial reductions in noise by disrupting harmonics produced when sawing materials such as tubing, angle etc. Improved swarf clearance is also achieved requiring less effort to complete each cut. Tooth life is greatly extended, as is battery life when used with a cordless drill. Suitable for all uses: engineering, construction and maintenance. 4 to 6 teeth per inch. 28.5mm (1 1/8â) cutting depth.
Electricianâs Kit – 9 Pieces
Comprises of 16, 20, 25, 32, 40 and 51mm variable pitch bi-metal high speed steel holesaws with hardened cutting edges, K7 Spring, K1 and K10 arbors with pilot drills.
Supplied in a robust plastic carry case.
Specification :
Brand : Kennedy Industrial
eCl@ss Code : 21019090
No. of Pieces : 9
Overall Depth : 75
Overall Length : 230
Overall Weight : 0.98
Overall Width : 200
Supplier Part No. : VPK9E
UNSPSC Code : 27112826
Weight each : 90g
| Weight | 1 kg |
|---|
