E16R SCLCR 09 BORING BAR
Indexa Screw-On Carbide Shank Boring Bars with Through Coolant – SCLC R/L

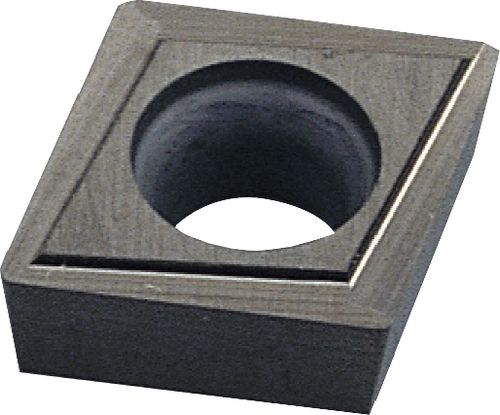

95° approach for 7° positive 80° rhombic inserts.
Out of stock
SKU : IND1067460K
Indexa Screw-On Carbide Shank Boring Bars with Through Coolant – SCLC R/L
95° approach for 7° positive 80° rhombic inserts.
Specification :
Brand : Indexa
Dimensions f : 8.5
Dimensions h : 14
Dimensions h1 : 8
Dimensions h8 : 16
Dimensions l1 : 200
Dmin : 18
eCl@ss Code : 28039190
ISO Ref : E16R SCLCR
Overall Weight : 0.445
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
