E10M SCLCR 06 BORING BAR
Indexa Screw-On Carbide Shank Boring Bars with Through Coolant – SCLC R/L

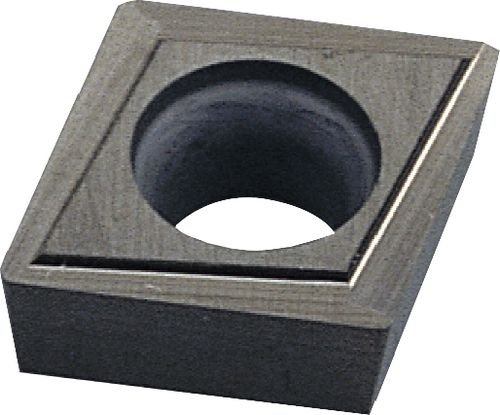

95° approach for 7° positive 80° rhombic inserts.
Out of stock
SKU : IND1067340K
Indexa Screw-On Carbide Shank Boring Bars with Through Coolant – SCLC R/L
95° approach for 7° positive 80° rhombic inserts.
Specification :
Brand : Indexa
Dimensions f : 5.5
Dimensions h : 9
Dimensions h1 : 5
Dimensions h8 : 10
Dimensions l1 : 150
Dmin : 12
eCl@ss Code : 28039190
ISO Ref : E10M SCLCR
Overall Weight : 0.13
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
