DPTS-2620 TOOL BLOCK FORSIZE 26 BLADE
Tool Blocks
For use on manual and CNC lathes, this universal style tool block will accurately clamp all parting blades of the corresponding width, 26mm or 32mm. The rigid clamping method allows blades to be set securely for varying depths of cut.
Compatible with Self-Grip âSGFHâ
Do-Grip âDGFHâ
Tang-Grip âTGFHâ
Out of stock
SKU : IND1521160K
Tool Blocks
For use on manual and CNC lathes, this universal style tool block will accurately clamp all parting blades of the corresponding width, 26mm or 32mm. The rigid clamping method allows blades to be set securely for varying depths of cut.
Compatible with Self-Grip âSGFHâ
Do-Grip âDGFHâ
Tang-Grip âTGFHâ

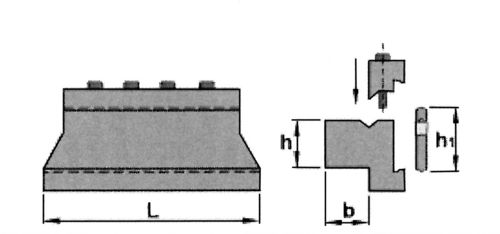

Specification :
Brand : Indexa
eCl@ss Code : 28039190
h and b : 20
h1 : 26
Lumens : 87
Product Number : DPTS-2620
Supplier Part No. : DPTS-2620
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
