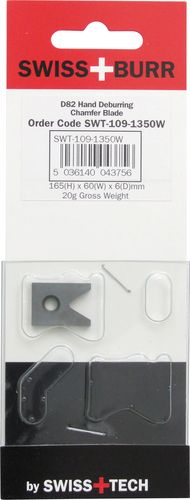

D82 HAND DEBURRING CHAMFERING BLADE
Rp430.000
SwissBurr Corner Chamfering Blades
SwissBurr hand deburring tools are a fast effective and efficient way of deburring holes, slots and edges. Swiss Burr is a totally modular system of interchangeable handles, holders and blades designed to cover all applications. A choice of HSS or carbide blades, countersinks and scrapers are available to suit your specific application. Swiss Burr blades are also interchangeable with commonly available brands including Kennedy, Noga, Ruko, Seco, Snap-Tap and Stellram.
Corner Chamfering Blades
D80 Solid Carbide Blade
For sheet metal and flat surfaces, for scraping surfaces and deburring sheet metal up to 3mm thick.
D82 Solid Carbide Heavy Duty Blade
With double edge for deburring sheet metal, for deburring sheet metal up to 9mm thick.
Out of stock
SKU : SWT1091350W
SwissBurr Corner Chamfering Blades
SwissBurr hand deburring tools are a fast effective and efficient way of deburring holes, slots and edges. Swiss Burr is a totally modular system of interchangeable handles, holders and blades designed to cover all applications. A choice of HSS or carbide blades, countersinks and scrapers are available to suit your specific application. Swiss Burr blades are also interchangeable with commonly available brands including Kennedy, Noga, Ruko, Seco, Snap-Tap and Stellram.
Corner Chamfering Blades
D80 Solid Carbide Blade
For sheet metal and flat surfaces, for scraping surfaces and deburring sheet metal up to 3mm thick.
D82 Solid Carbide Heavy Duty Blade
With double edge for deburring sheet metal, for deburring sheet metal up to 9mm thick.
Specification :
Brand : Swiss And Burr
Description : Sheet up to 8mm
eCl@ss Code : 21040803
Supplier Part No. : 3BD82
Type : D82
UNSPSC Code : 27111526
Weight : 9g
| Weight | 1 kg |
|---|
