CTGPL 2525M16 EXTERNAL TOOLHOLDER
Indexa Top Clamp External Toolholders – CTGP R/L

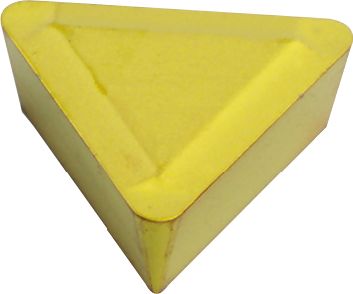

90° approach for 11° positive triangular inserts.
Out of stock
SKUÂ :Â IND1061130K
Indexa Top Clamp External Toolholders – CTGP R/L
90° approach for 11° positive triangular inserts.

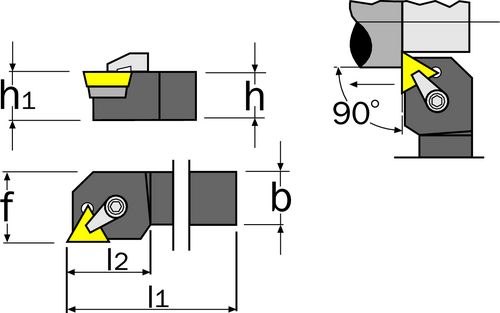

Specification :
Brand : Indexa
Designation CTGP…. : L2525M
Dimensions b : 25
Dimensions f : 32
Dimensions h=h1Â :Â 25
Dimensions l1Â :Â 150
Dimensions l2Â :Â 28
eCl@ss Code : 28039190
Overall Weight : 0.72
Supplier Part No. : 106-1130
UNSPSC Code : 23242106
Weight each : 744g
| Weight | 1 kg |
|---|
