CTGPL 2020K16 EXTERNAL TOOLHOLDER
Indexa Top Clamp External Toolholders – CTGP R/L
90° approach for 11° positive triangular inserts.
Out of stock
SKUÂ :Â IND1061110K
Indexa Top Clamp External Toolholders – CTGP R/L
90° approach for 11° positive triangular inserts.
Specification :
Brand : Indexa

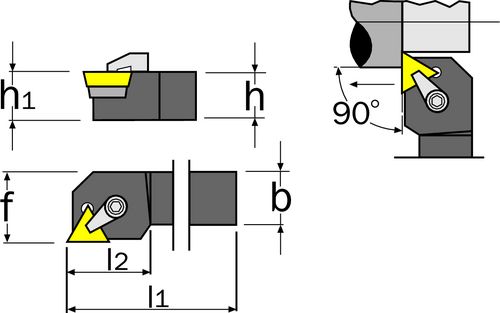

Designation CTGP…. : L 2020K
Dimensions b : 20
Dimensions f : 25
Dimensions h=h1Â :Â 20
Dimensions l1Â :Â 125
Dimensions l2Â :Â 28
eCl@ss Code : 28039190
Overall Weight : 0.38
Supplier Part No. : 106-1110
UNSPSC Code : 23242106
Weight each : 395g
