CTFPR 1616H11 EXTERNAL TOOLHOLDER
Indexa Top Clamp External Toolholders – CTFP R

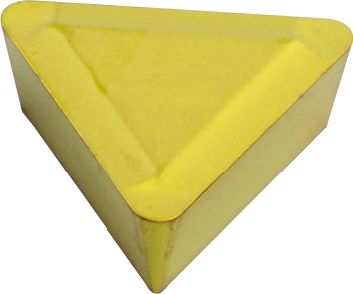

90° approach for 11° positive triangular inserts.
Out of stock
SKU : IND1060900K
Indexa Top Clamp External Toolholders – CTFP R
90° approach for 11° positive triangular inserts.
Specification :
Brand : Indexa
Designation CTFP…. : R 1616H

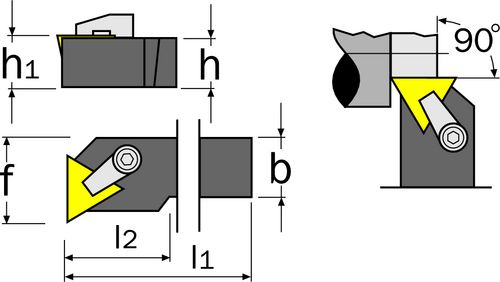

Dimensions b : 16 | mm
Dimensions f : 20
Dimensions h=h1 : 16
Dimensions l1 : 100
Dimensions l2 : 22
eCl@ss Code : 28039190
Overall Weight : 0.195
Supplier Part No. : 106-0900
UNSPSC Code : 23242106
Weight each : 203g
| Weight | 1 kg |
|---|
