CSDPN 2020K12 EXTERNAL TOOLHOLDER
Indexa Top Clamp External Toolholders – CSDP N

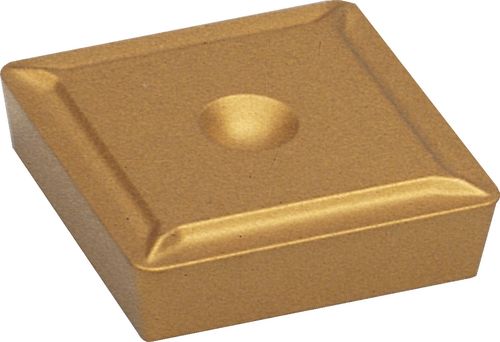

45° approach for 11° positive square inserts.
Out of stock
SKUÂ :Â IND1060460K
Indexa Top Clamp External Toolholders – CSDP N
45° approach for 11° positive square inserts.
Specification :
Brand : Indexa
Designation CSDP…. : N 2020K

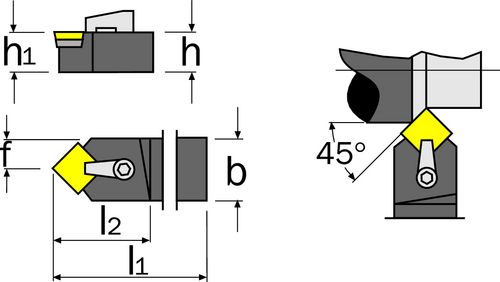

Dimensions b : 20
Dimensions f : 10.0
Dimensions h=h1Â :Â 20
Dimensions l1Â :Â 125
Dimensions l2Â :Â 28
eCl@ss Code : 28039190
Overall Weight : 0.365
Supplier Part No. : 106-0460
UNSPSC Code : 23242106
Weight each : 380g
| Weight | 1 kg |
|---|
