CSDPN 1616H09 EXTERNAL TOOLHOLDER
Indexa Top Clamp External Toolholders – CSDP N

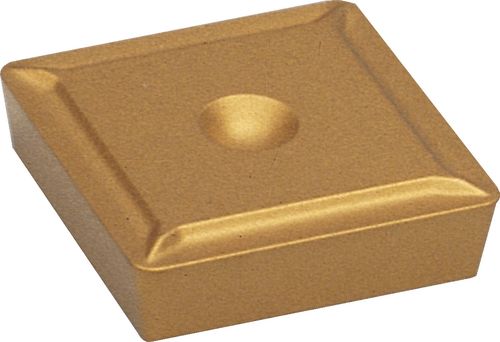

45° approach for 11° positive square inserts.
Out of stock
SKUÂ :Â IND1060420K
Indexa Top Clamp External Toolholders – CSDP N
45° approach for 11° positive square inserts.
Specification :
Brand : Indexa
Designation CSDP…. : N 1616H

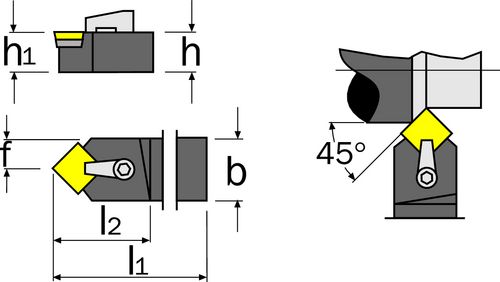

Dimensions b : 16
Dimensions f : 8.0
Dimensions h=h1Â :Â 16
Dimensions l1Â :Â 100
Dimensions l2Â :Â 22
eCl@ss Code : 28039190
Overall Weight : 0.19
Supplier Part No. : 106-0420
UNSPSC Code : 23242106
Weight each : 194g
| Weight | 1 kg |
|---|
